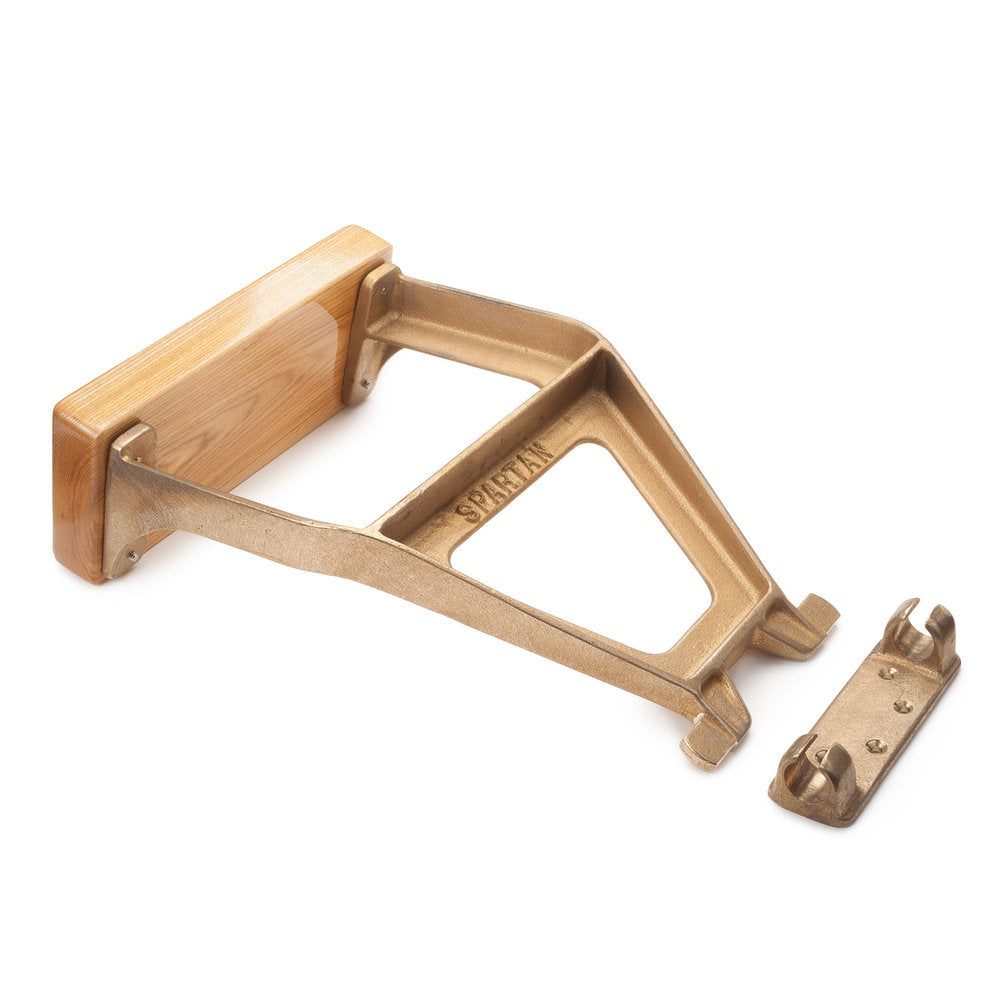

Outboard Motor Mount, Bronze, Deck-mount
Spartan's outboard motor mount is made of cast bronze and heavy hardwood to provide a rugged, dependable method of mounting an outboard up to 6 h.p. on the stern of sailboats with an afterdeck of 8" or more.
The bracket consists of two parts: the mounting plate and the bracket itself. The deck mounting plate is permanently fastened through the afterdeck and the bracket is positioned only when the outboard is required. This keeps the engine out of the way when it is not needed, and does not spoil the beauty of the boat. The bracket is simply placed in the deck mounting plate at a straight-up angle and then lowered 90 degrees to the proper horizontal position. There are no fasteners required to lock the bracket into the mount, and the mounting plate will not snag lines. Mount requires 4 - 1/4" fasteners.
Length = 17.25"
Width = 12" (max)
Weight = 18 lbs. complete
